Laser Cut Hinge PLANS (Digital Download ONLY) CO2 Laser/Glowforge Project (svg, dxf, pdf, ai files)

$2.81 $3.75

Instant Digital Download

This listing is for the cutting files used to laser cut 3 types of hinges from 3mm Baltic Birch wood on a CO2 laser including the Glowforge system. Be aware, you are not buying the physical item. This digital file may be used to produce tangible items for sale. You may incorporate this item into your own projects to sell. You may not incorporate this design into any other designs with the intention of selling/distributing the design.

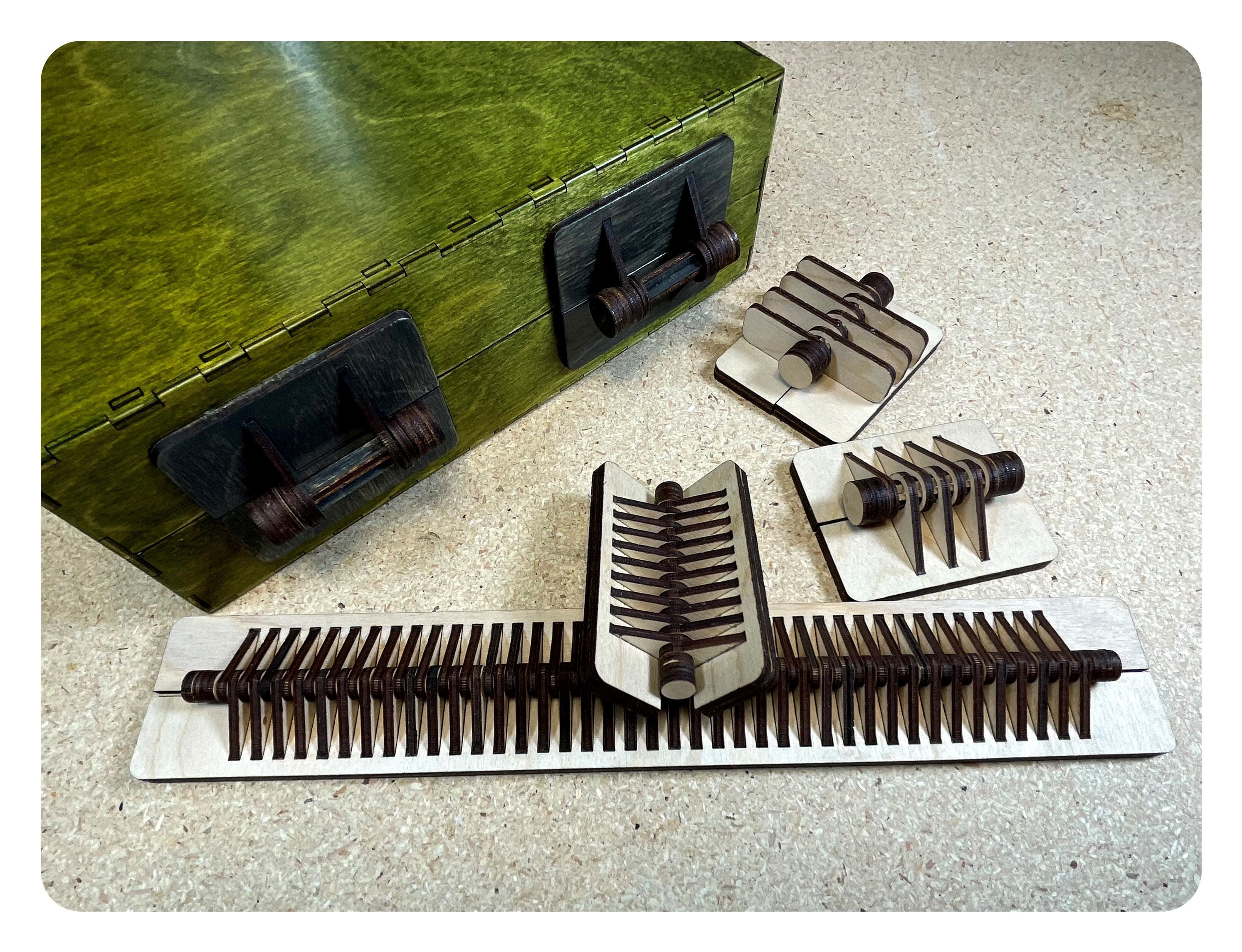

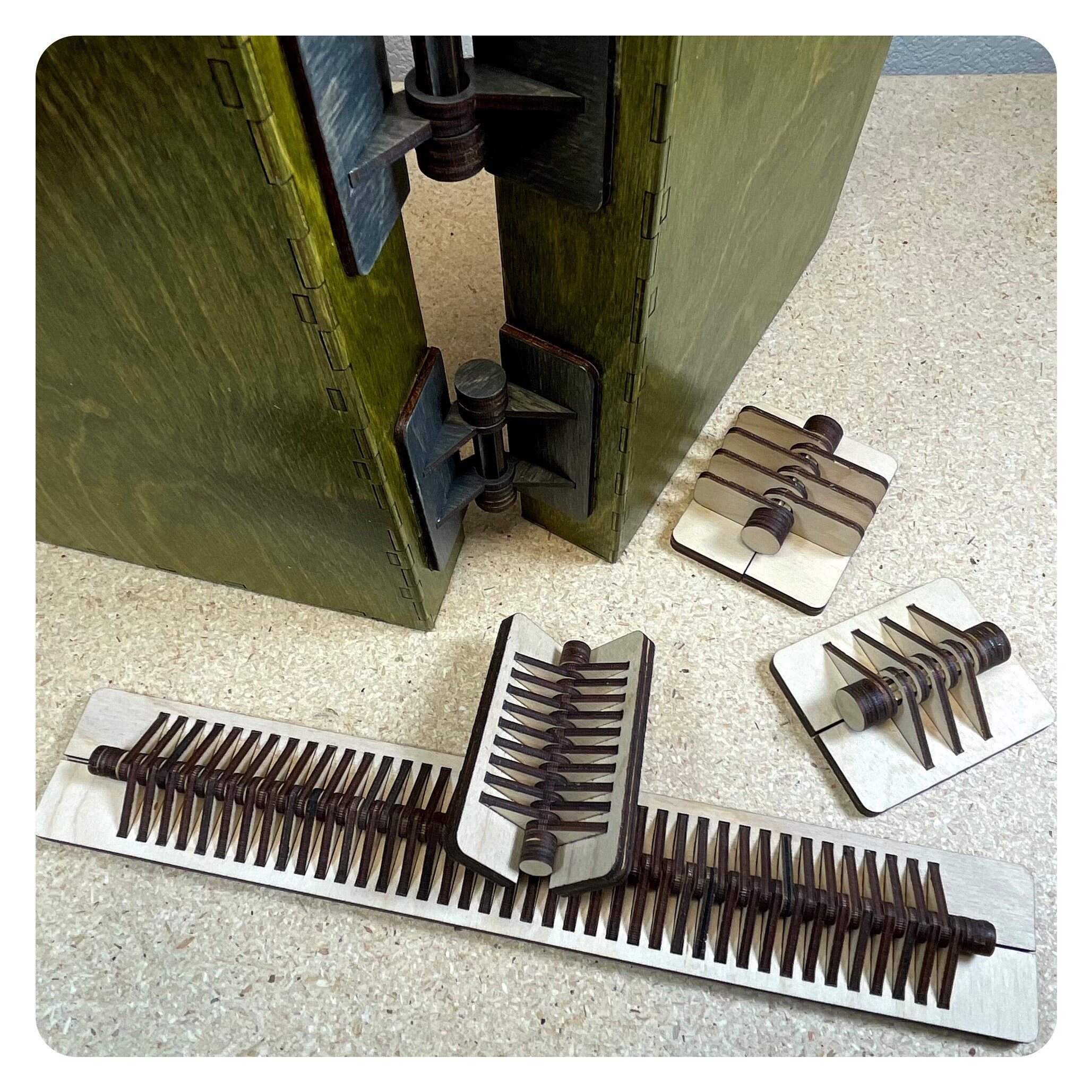

Includes cut files for 3 inch standard style hinge, 3 inch standard style with flat knuckles, and 3 lengths of piano style hinges (3.4", 3", and 12").

Easy to incorporate into your own projects or attach to existing projects with glue or hardware.

Suitable for use with any laser capable of cutting 3mm wood material. Piano style hinges use bamboo skewers in addition to Baltic Birch, available at most grocery stores.

Link to Video Instructions for cutting and assembly included.

Includes several popular file types:
As well as program specific files:
RDL (for RDWorks)
LBRN/LBRN2 (for Lightburn)

By purchasing and downloading this listing you agree to the following:
- You are buying digital files to make this project on a CO2 laser, you will not be sent any physical product.
- Unless otherwise stated, any digital file plans purchased from 702Savant may be used to produce items for sale. You may produce and sell the physical product described in these plans.
- You may not resell or share these files or the plans therein.
- You may not modify this file or the plans for resale.
- All sales of digital file plans are final and downloaded items are non-refundable. ALL DIGITAL SALES ARE FINAL!

Be sure to check out the other items in our Laser Cutting Files section. We're adding new designs all the time for you to make and sell.
